MULTIMILL/CO-MILL
Multi Mill is a self-contained portable unit useful for high speed granulating, pulverizing, mixing, shredding and chopping of wide range of wet and dry materials without special attachments. The Multi mill operates on the principle of variable force swing beaters having both knife and impact edges rotating within a selected screen to get the required size reduction. The material is fed in the hopper, shredded and milled through beaters consisting of knife and impact edges.
Description

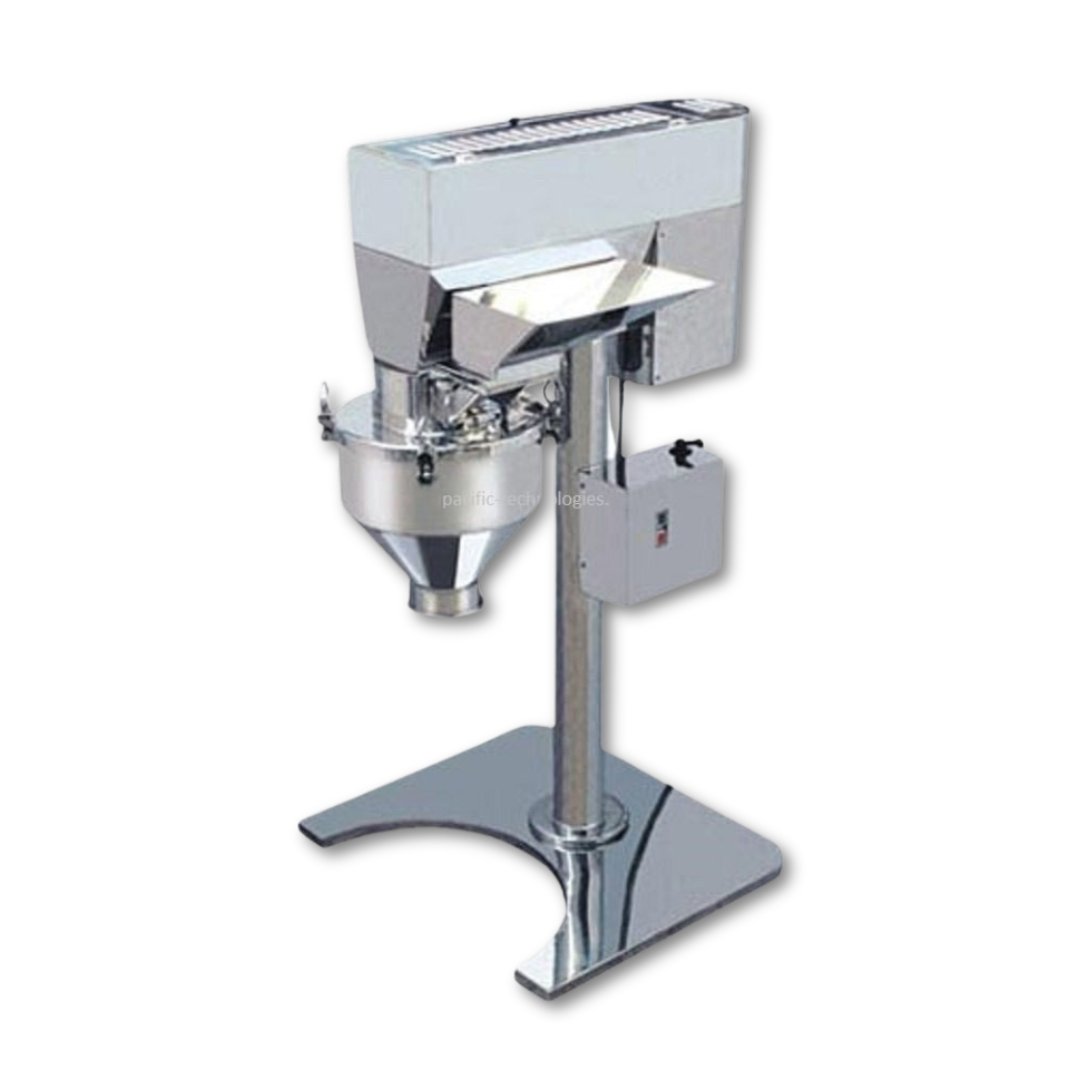

MULTIMILL:
Multi Mill is a self-contained portable unit useful for high speed granulating, pulverizing, mixing, shredding and chopping of wide range of wet and dry materials without special attachments. The Multi mill operates on the principle of variable force swing beaters having both knife and impact edges rotating within a selected screen to get the required size reduction. The material is fed in the hopper, shredded and milled through beaters consisting of knife and impact edges.

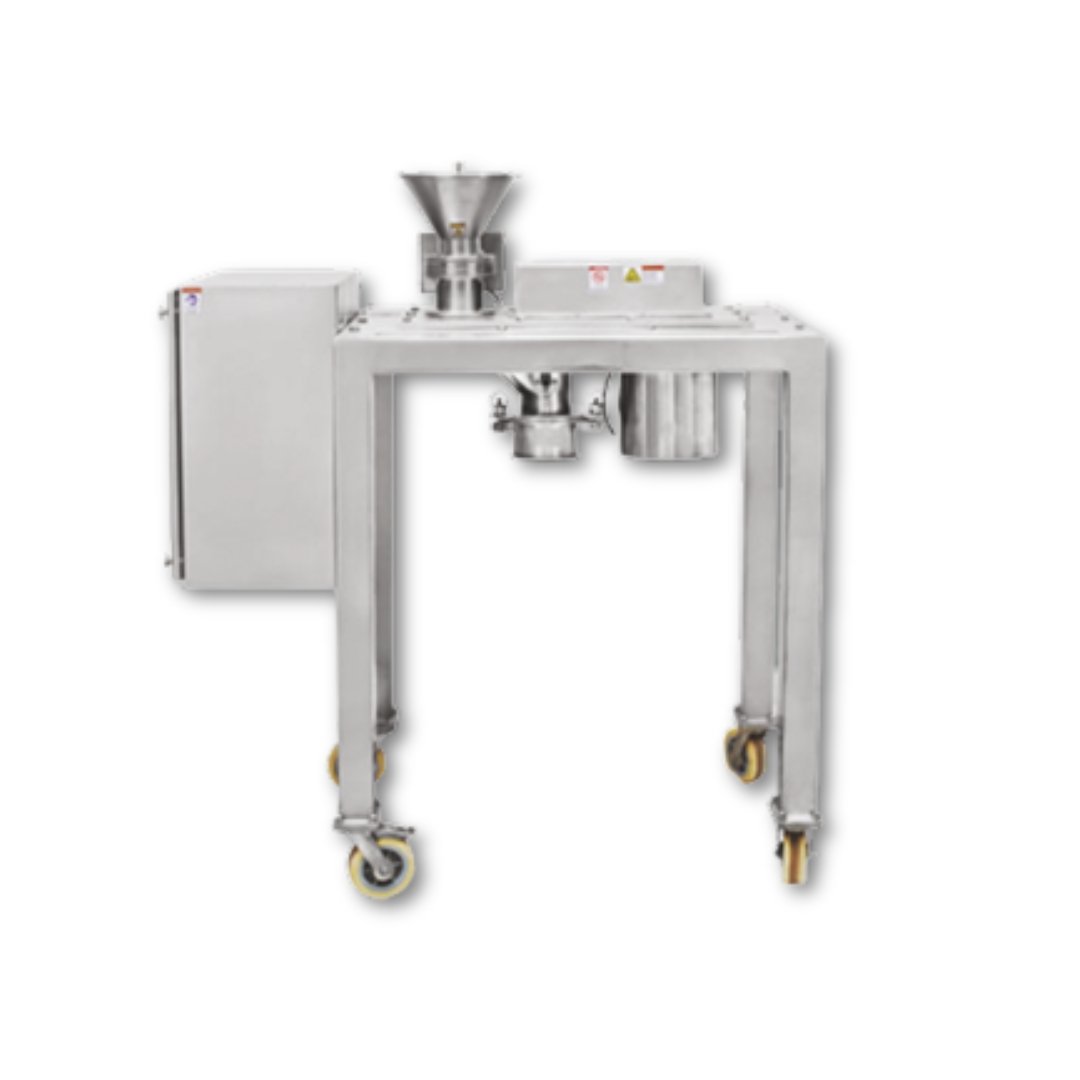

CO-MILL:
Co Mill is suitable for dry granulation & design for wet granulation also. To satisfy the need of size reduction with low heat, low dust and clear noise operation, conical screen mill concept is developed.
The key to the co-mill’s performance is the engineered combination of low velocity operation and the highly evolved design & geometry of the conical screen & impeller
- Capacity (in HP) -1,3,5 and 7.5
- cGMP Model & Design as per ASME guidelines
- MOC-SS 304/SS 316/SS 316 L / HASTELLOY
- Qualification Documents- IQ, DQ, OQ & FAT Protocol
