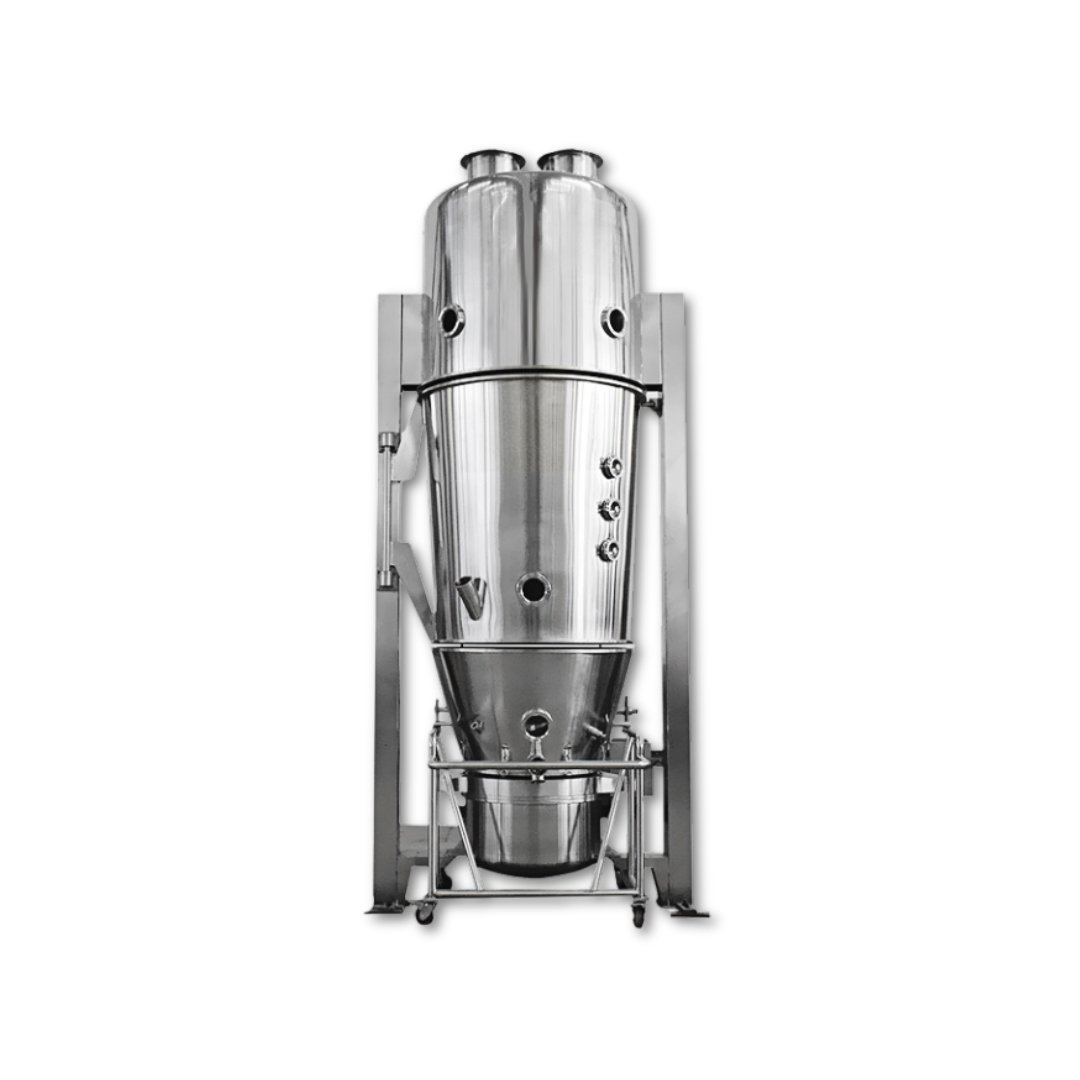

FLUID BED DRYER (FBD)

Fluid Bed Dryer (FBD) is a kind of equipment used extensively in the pharmaceutical industries to reduce the moisture content of pharmaceutical powder and granules. The wet solids are lifted from the bottom and suspended in a stream of air (fluidized state).

FBD work on the principle of fluidization, a process in which hot gas or air is introduced into the spaces between solid particles. Upward forces on the particles increase as the air’s velocity increases causing them to equal the gravitational forces below.

• Capacity: 2.5-500 Kg
• cGMP & Non-GMP Model Available
• MOC-MS/SS304/SS316/SS316L/HASTELLOΥ
• Inflatable silicon tube for bag sealing & product container sealing
• Food Grade Elastomers
• Online Sampling Device
• Telescopic Cylinder for Bag shaking (Top/Side)
• Safety Interlock (Motor Overload, Emergency Shut off, Inlet Temp high- Close steam control valve, Blower failure, low seal gasket pressure- Top & Bottom etc.)
• Steam Valve controlled through Panel with solenoid valve to control the steam temperature
• Qualification Documents- IQ, DQ, OQ & FAT Protocol

OPTIONS:-

• Solid Monitor Flow
• PLC with HMI/SCADA
• Liner Way Require
• Double Skin AHU Body
• Air Handling Unit with Hepa Filtration
• Pneumatically operated Inlet & outlet Dampers
• Racking System in the container with Motor, Gear Box, Stirrer, Bearing- Housing & Combined control Panel
• Various type of Coating for Wetted Parts like-HALAR/ETFE/PVDF/PFA (Food Grade)
• VFD for Blower
• 21 CFR Part 11- Provision & Compliance
• Silencer
• Rupture Disc
